Plastique PVC Energy Saving Injection Molding Machine 200T Clamping

High speed energy saving machine injection plastique PVC PVC fitting machine, clamping force:200-1100T

1. Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking;
2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
3. Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience;
4. Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.
5.

6. SPECIFICATION		HJF290
   Screw Type		A	B	C
   Screw Diameter	Mm	55	60	65
   Screw L/D Ration	L/D	23.1	21	19.3
   Shot Size(Theoretical)	cm3	712	847	994.9
   Injection Weight(PS)	g	648	779.9	905
   Injection Rate	g/s	210	240	270
   Injection Pressure	MPa	205	168	143
   Screw Speed	rpm	0~180
   Clamping Force	KN	2900
   Opening stroke	Mm	585
   Space Between Tie Bars	mm	600*600
   Max.Mold Height	mm	600
   Min.Mold Height	mm	220
   Ejector Stroke	mm	150
   Ejector Tonnage	KN	75
   Max.Pump Pressure	MPa	16
   Pump Motor Power	KW	30
   Heater power	KW	15
   Machine Dimension(L*W*H)	M	6.0*1.6*2.1
   Machine weight	T	8.5
   Oil Tank Capacity	L	570

Plastique PVC Injection Molding Machine

Horizontal Thermoplastic Injection Molding Machine

200T Clamping Injection Molding Machine

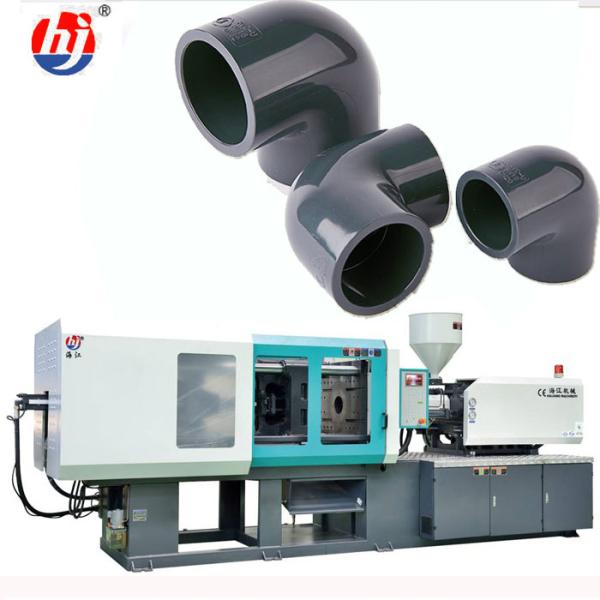

Plastique PVC Energy Saving Injection Molding Machine 200T Clamping Images
